Description

Who the Navien NHB-80H suits

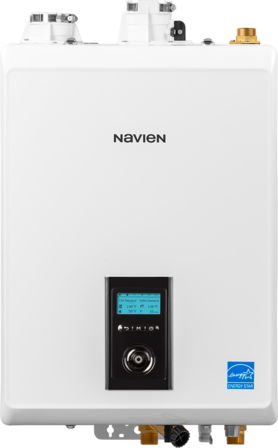

The Navien NHB-80H is a heating-only condensing boiler for homes with hot-water baseboard, radiators or radiant floor heat. It does not make domestic hot water on its own, so it fits homeowners who already have a separate water heater or who want to pair the boiler with an indirect tank. Navien rates the NHB-80H from 8,000 to 80,000 BTU/h of heating input, which places it in the range of many small-to-mid-size homes in McHenry County and Lake County, IL, and the surrounding Chicago suburbs and southeastern Wisconsin. The right size comes from a heat-loss calculation of your home, not from the size of the boiler being replaced, so GSHA confirms sizing during the estimate. If your calculated load is lower, the NHB-55H may fit; if it is higher, see the NHB-110H or NHB-150H.

Benefits of the NHB-80H

• 95% AFUE, ENERGY STAR certified. AFUE is the heating-efficiency rating for boilers and furnaces; higher means more of the gas you buy becomes heat in the house. As a condensing boiler, the NHB-80H captures heat from its exhaust that a conventional boiler would send up the chimney, which is why it vents in PVC and needs a condensate drain. Both the primary and secondary heat exchangers are stainless steel.
• 10:1 turndown for steadier heat. Turndown ratio is how low the burner can modulate. The NHB-80H can run as low as 8,000 BTU/h, so on mild days it runs longer at low fire instead of short cycling on and off, which keeps room temperatures more even and reduces wear.
• Compact wall-hung cabinet. At 17.3 in. wide by 23.8 in. tall by 12.8 in. deep and 73 lbs, it hangs on the wall and frees floor space that a floor-standing cast-iron boiler occupied.
• Built-in zoning. The control can run up to 3 zone valves, 3 zone pumps, or 2 zone pumps plus an indirect-tank pump, so it suits multi-zone homes and indirect water-heater setups. GSHA confirms the zoning layout at the estimate.
• Flexible venting and fuel. 2 in. PVC venting up to 65 ft or 3 in. up to 150 ft, with 0 in. vent clearance to combustibles, gives options for routing through a basement wall. It runs on natural gas or propane (field convertible).

Navien NHB-80H price and installation estimate

Installed package price: $8,408.80. This is a complete installed package from GSHA Services, LTD, not an equipment-only price. The standard boiler installation includes:

• Mounting and leveling the boiler (wall-hung, or on a floor stand where the location requires it)
• New electrical disconnect, power and control wiring
• Supply and return connections with 1-1/4 in. isolation flanges
• New 3-speed cast-iron circulator, aquastat (100-240°F) and autofill combination valve
• 1-1/4 in. hydraulic separator, expansion tank and hydronic docking station
• 3 in. PVC venting with sidewall vent kit
• Commissioning kit (Protector F1 and Cleaner F3) for the system water
• Honeywell T4 Pro hydronic thermostat
• Removal of the old boiler, start-up and safety inspection
• One boiler tune-up within the first year (timing confirmed at the estimate)

What can change the final quote: gas line capacity and length, the venting route and length, where the condensate drain can go, water quality treatment, electrical work, zoning and piping changes to the existing system, permits, accessories such as NaviLink Wi-Fi control, and how accessible the boiler location is. The estimate is free and confirms the final price for your home. Financing available with approved credit; see financing.

Request an Installation Estimate or call (224) 220-3660.

Navien NHB-80H specifications

Source: Navien NHB-80H model page and NHB-H series page at navieninc.com. Navien does not publish a sound rating for this model.

Installation and warranty

GSHA Services, LTD is a Navien Service Specialist (NSS), an authorized Navien dealer, and is listed on Navien’s installer locator at navieninc.com. Our Navien Level 3 trained technicians install the NHB-80H, treat the system water with the commissioning kit, set up the zoning and thermostat, and run a start-up and safety inspection before leaving.

Navien residential limited warranty (NHB-H series): 1 year labor, 5 years parts, and 10 years full coverage on the heat exchanger, pro-rated in years 11 through 15 (pro-rated means Navien pays a declining share of the cost in those later years). Residential terms apply to single-family residential installations by a licensed contractor. The installation date must be provided to Navien, and proof of that date may be requested, so keep your GSHA installation invoice with your warranty records. Units bought online or through unauthorized channels are not covered.

GSHA Install-Right boiler coverage: the installed package adds 10-year parts and 10-year labor coverage from GSHA. Labor coverage requires annual GSHA boiler maintenance; service by another company voids GSHA’s labor coverage. This is GSHA’s own coverage and is separate from Navien’s warranty.

Optional add-ons: NaviLink Lite Wi-Fi control ($153.55) or NaviLink Wi-Fi control ($288.43) let you monitor and adjust the boiler from your phone.

Navien NHB-80H FAQs

How much does a Navien NHB-80H cost installed?

$8,408.80 as a complete installed package from GSHA Services, LTD. The price includes the boiler, circulator, expansion tank, hydraulic separator, venting, thermostat, removal of the old boiler and start-up; gas line, venting route, condensate and piping changes can adjust the final quote, which is confirmed in a free estimate.

Does the NHB-80H heat domestic hot water?

No, it is a heating-only boiler. If you want one system for heat and hot water, the NHB-80H can be paired with an indirect water heater using its built-in indirect-pump control, or you can look at a Navien combi-boiler, which is one wall-hung unit for both home heating and domestic hot water. See our Navien water heaters and prices page for the water-heating options.

Is 80,000 BTU/h the right size for my home?

Only a heat-loss calculation can answer that. The NHB-80H’s 10:1 turndown lets it run as low as 8,000 BTU/h, so it can match a small load without short cycling. GSHA sizes the boiler during the estimate.

Can the NHB-80H replace my old cast-iron boiler?

Usually yes. The wall-hung cabinet frees floor space, and it connects to existing baseboard, radiator or radiant loops. It vents in PVC rather than the old chimney and needs a condensate drain, so the vent route and drain location are checked at the estimate.

Does it run on propane?

Yes. Navien rates the NHB-80H for natural gas or propane, field convertible, which matters for homes outside gas-service areas.

What does the GSHA 10-year labor coverage require?

Annual GSHA boiler maintenance. If another company services the boiler, GSHA’s labor coverage is voided. Navien’s own warranty (1 year labor, 5 years parts, 10 years full coverage on the heat exchanger, pro-rated in years 11 through 15) is separate.

Get a free NHB-80H installation estimate

GSHA Services, LTD installs and services Navien boilers from our Woodstock and Lake Bluff, IL locations. Request an Installation Estimate online or call (224) 220-3660. See all Navien boiler prices, our boiler installation service, our Navien water heaters and prices page, and our service area.
